ARC Generator
Ensure continuous operation of your critical devices with the ARC Generator (ARC-GEN), a solar and methanol hybrid power solution engineered for use in remote, harsh, and disconnected environments. The ARC Generator autonomously combines solar charging by day and methanol-powered battery charging by night, ensuring uninterrupted 24/7 performance across demanding industrial, surveillance, and infrastructure sites.
Housed in a corrosion-resistant, powder-coated steel enclosure with IP66 protection, the unit features dual-sealed doors, concealed hinges, and anti-theft design measures including GPS tracking and a ruggedised, lockable cabinet. It is easily deployed using integrated forklift slots, pump truck access points, and adjustable stabilising legs, making it ideal for highways, construction, secure sites, telecoms, and rail environments.
Call your local depot
Gallery
Key Features
- Uninterrupted Power: Dual solar–methanol system delivers up to 200kWh/month for 24/7 operation
- Extreme Reliability: Tested from -20°C to +50°C and high-wind conditions
- Methanol Backup: 120L generator with smart fuel control extends uptime
- Control & Connectivity: Remote monitoring with onboard platform, 4G/5G diagnostics, and maintenance alerts
- Secure & Rugged: IP66 steel enclosure with GPS and tamper protection
- Fast Deployment: Forklift-ready with stabilising legs and foldable solar arrays
- Sustainable: Low-emission, recyclable build supporting ESG targets
- Scalable: Integrates with wireless, satellite, and mesh networks for IoT and surveillance
Powering Critical Operations in Challenging Environments
Challenge: Delivering reliable power to security, monitoring, and telecoms systems in remote, disconnected, and hazardous environments.
Solution: The ARC Generator provides scalable and clean energy in a wide range of applications:
- Border Security: Enable continuous surveillance with 24/7 power for cameras, analytics, and connectivity.
- Mining Sites: Power IoT devices and monitoring systems underground or at surface level with zero generator downtime.
- Emergency Response: Rapidly deploy mobile power for field hospitals, disaster recovery centres, and mobile networks.
- Construction Projects: Provide day-one power and telecoms to site offices, perimeter sensors, and CCTV.
- Highways & Rail: Support advanced traffic monitoring systems (TASCAR, SVD), barriers, kiosks, or depots in off-grid areas.
- Telecommunications: Deliver consistent power for mesh, cellular, point-to-point and satellite infrastructure, reducing reliance on hardwired power and data connections.
Technical Specifications
- Power Output: Max 250W
- Energy Capacity: 132kWh (120L methanol fuel)
- Battery: 400Ah @ 24V / 6kWh @ 80% DoD
- Solar Array: 720W – 1kWh
- Output Voltage: 230VAC
- External Power Interface: 230VAC
- Operating Temp: -20°C to +50°C
- Weight: 680kg (dry), 800kg (with fuel)
- Dimensions (Transport): 1100 x 1200 x 1500mm
- Dimensions (Deployed): 1600 x 2400 x 2000mm
- IP Rating: IP66
FAQs
The ARC Generator is a solar and methanol powered solution providing off-grid energy for critical operations in demanding environments, supporting industries such as highways, defence, and oil and gas.
The ARC Generator is environmentally friendly because it operates on renewable solar energy, reducing reliance on fossil fuels and lowering carbon emissions.
It combines solar power with a methanol generator, providing continuous energy and enhancing system lifespan, with remote monitoring capabilities for performance tracking.
Yes, it’s designed to operate in extreme weather conditions, ensuring reliability in tough environments.

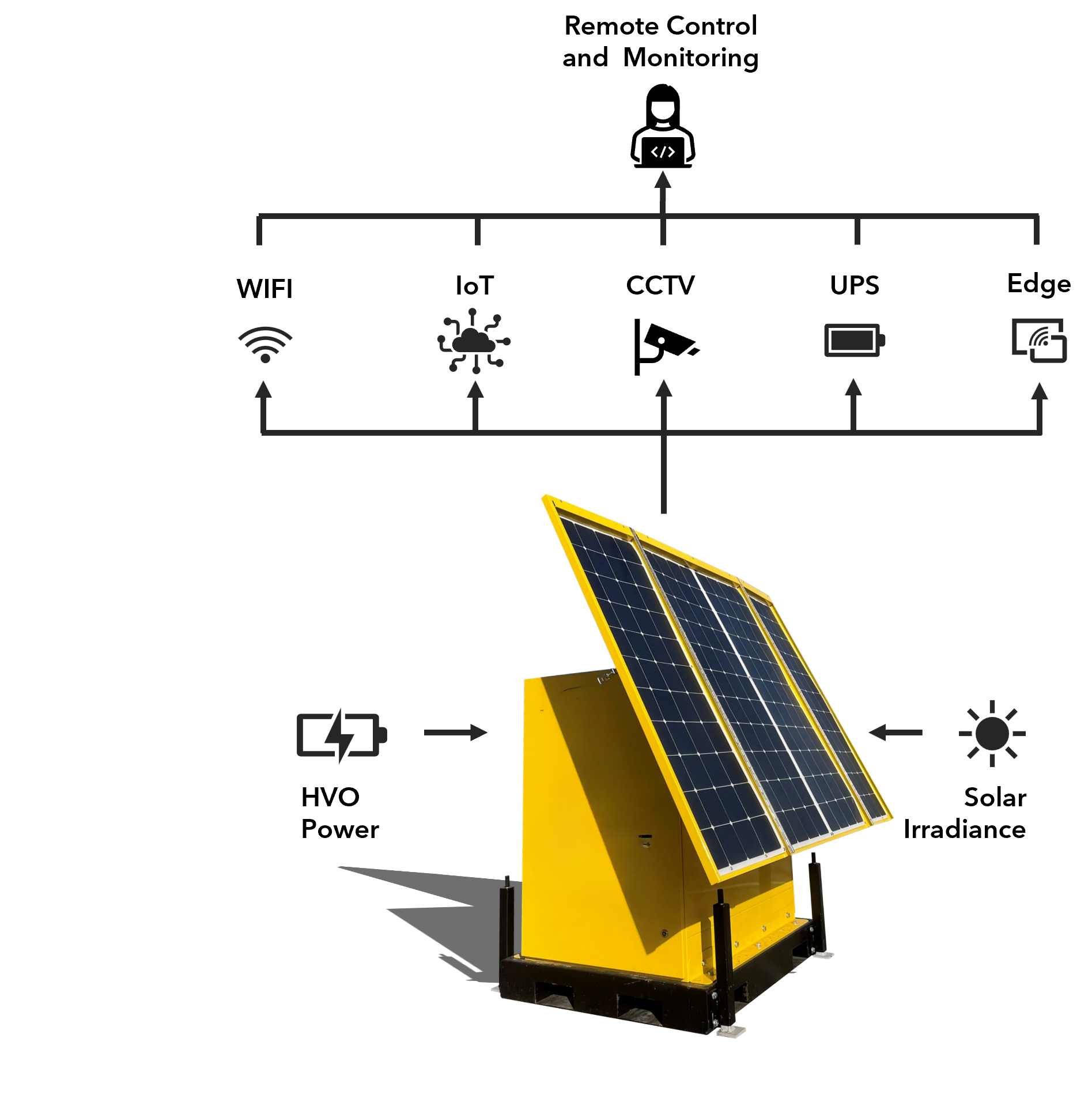

How the system works
How the ARC Generator works
| Location | UK London | Kazakhstan Atyrau | North America Denver |
|---|---|---|---|
| Power per hour* (800w Array) | 41 – 100w | 48 – 140w | 127 – 165w |
| Power per month** | 30 – 73kWh | 35-100kWh | 91-118kWh |
| CO2 savings per year*** | 624kg | 816kg | 997kg |
| Equivalent number of trees sequestering carbon**** | 31 | 43 | 49 |
* Minimum and maximum wattage generated from winter to summer for the location
** Minimum and maximum wattage generated from winter to summer for the location
*** CO2 savings per SICS System
**** Date provided by United States Environmental Protection Agency (www.epa.gov)
